TESLA CERTIFIED INSTALLER / NORTHERN VIRGINIA
Professional Tesla Wall Connector and Universal Wall Connector installation planned around your home's electrical capacity, parking location and the cleanest practical wiring route. Auto Charge Pros evaluates the electrical system, installs the dedicated charging circuit, commissions the Wall Connector and coordinates applicable permitting and inspection requirements.
Owner and Virginia Master Electrician Nick Wilson personally performs the electrical installation work, with no subcontractors.
Tesla Certified Installer • Virginia Master Electrician • Licensed & Insured • 1-Year Workmanship Warranty
01 / Tesla home charging
Tesla Wall Connector can provide up to 48 amps / 11.5 kW of Level 2 charging when installed on an appropriately designed 60-amp circuit and when both the vehicle and home's electrical system support that output.
Maximum charger capability does not mean every installation should automatically be configured for 48 amps. Vehicle charging capability and available household electrical capacity must also be considered.
When full-output charging is not appropriate, Wall Connector can be configured for a lower charging output.
Evaluate capacity first. Configure the charger around the home—not the other way around.
02 / wall connector vs universal
01

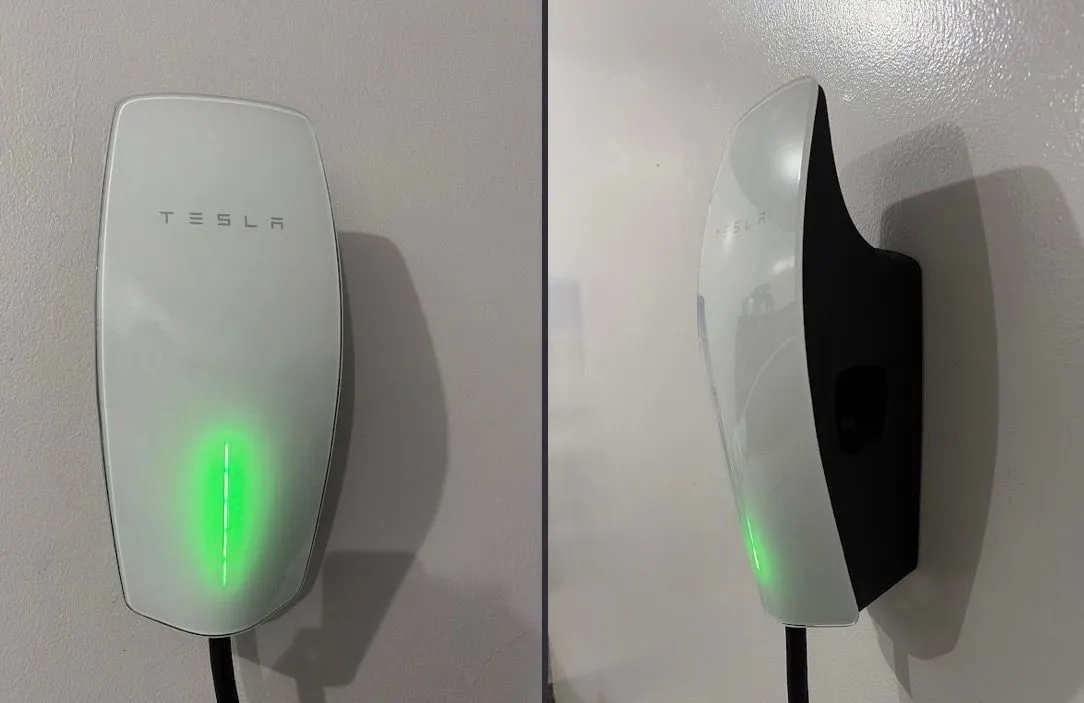

A hardwired Level 2 charging solution with a NACS charging connector. It integrates with the Tesla app, supports indoor or outdoor installation and can provide up to 48 amps when the vehicle and electrical system support it.
Best suited for
Tesla vehicles; NACS-equipped vehicles when compatible; permanent home charging; households primarily using NACS.
02
Universal Wall Connector combines NACS charging with an integrated J1772 adapter, making it a flexible option for households that may charge both Tesla and non-Tesla electric vehicles.
Best suited for
Mixed-EV households; Tesla + J1772 vehicles; homeowners who want flexibility for future vehicles.
Neither product guarantees a particular charging rate for every EV. Actual charging rate depends on the vehicle's onboard charging capability and available electrical power.
03 / 48-amp installation
A 48-amp continuous charging load is typically supplied by an appropriately designed 60-amp dedicated circuit. Because EV charging is a continuous electrical load, circuit sizing must account for the required 125% continuous-load factor.
Before recommending 48 amps, evaluate:
The vehicle's charging capability is part of that review. Do not assume every Tesla vehicle accepts 48 amps.
04 / load management
Limited electrical capacity does not automatically mean the homeowner needs a new 200-amp service.
Possible solutions can include:
01
Wall Connector can be configured for an appropriate lower circuit rating while still providing Level 2 charging.
02
Compatible Tesla power-management solutions can help keep charging within available electrical capacity when appropriate for the property and equipment configuration.
03
Multiple compatible Gen 3 Wall Connectors can use Group Power Management to share available charging capacity rather than requiring maximum electrical capacity for every charger simultaneously.
04
Panel, feeder or service improvements are recommended when the existing electrical system genuinely requires them.
05 / two EVs
Homes with two EVs do not necessarily need two completely independent maximum-output charging circuits. Tesla Gen 3 Wall Connectors support Group Power Management, allowing multiple compatible Wall Connectors to share available electrical capacity.
The appropriate configuration depends on the electrical service, daily driving needs, charger locations and available power.
Tesla currently supports Group Power Management for up to six Gen 3 Wall Connectors. That does not mean every household needs six chargers or one shared circuit.
06 / charger placement
The closest wall to the electrical panel is not always the best charger location. Placement should account for how the vehicle is actually parked and where the charging port is located.
Consider:
The goal is convenient daily charging without unnecessary cable stretching or obstruction.
07 / clean wiring
Auto Charge Pros prefers concealed wiring through accessible framing, basements, ceilings, attics and unfinished spaces when practical instead of automatically running exposed conduit across finished walls.

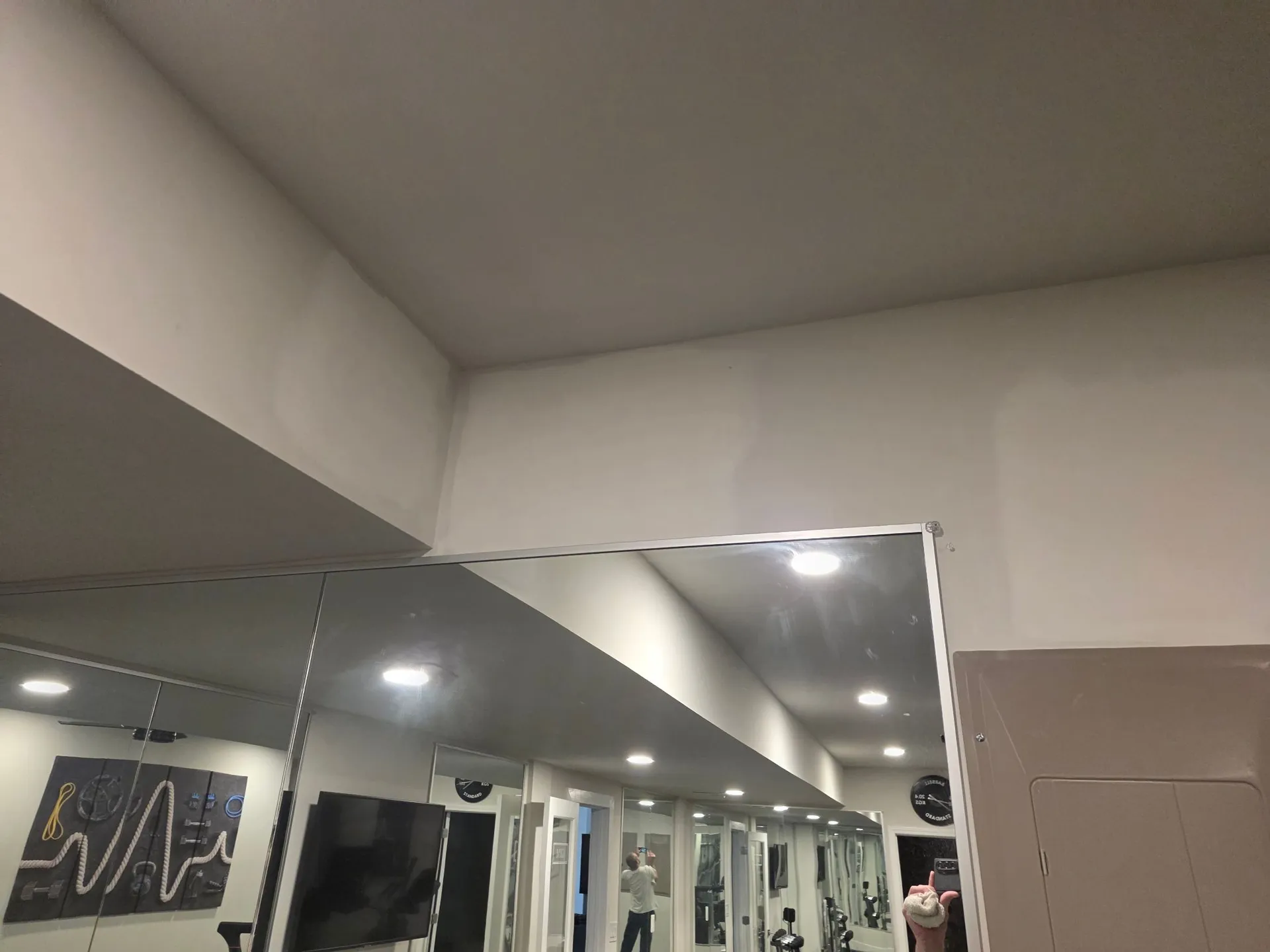

If drywall access is required, anticipated openings are discussed before installation whenever practical. Where included in the written estimate, removed drywall can be fastened back after the required electrical work and inspection. Full finishing—including tape, compound and sanding—is available separately when requested.
08 / outdoor installation
Tesla Wall Connector and Universal Wall Connector are designed for indoor or outdoor installation. Outdoor projects still require an appropriate electrical wiring method, mounting location and consideration of weather exposure and physical protection.
Outdoor applications may include:
09 / Tesla certified installer
Auto Charge Pros is a Tesla Certified Installer serving Northern Virginia. Tesla recommends qualified electrical installation for Wall Connector equipment and provides a Certified Installer network for customers seeking professional installation.
01
Wall Connector circuit sizing, commissioning and supported power settings are incorporated into the installation plan.
02
The electrical system and available capacity are evaluated before charger output is selected.
03
Nick personally performs the electrical installation.
04
Applicable electrical permitting and inspection requirements are coordinated according to the project's jurisdiction.
10 / installation process
01
Electrical panel, charger location and vehicle/charger details.
02
Evaluate service capacity and desired charging output.
03
Determine the cleanest practical circuit route and charger location.
04
Define circuit, routing, permitting and restoration scope.
05
Nick installs the circuit and Wall Connector, configures supported settings and tests operation.
06
Coordinate applicable jurisdictional inspection requirements.
11 / permits
Applicable electrical permitting and inspections.
View LOUDOUN COUNTY details →Electrical permit through Fairfax County PLUS for applicable residential charging circuits.
View FAIRFAX COUNTY details →For residential EV charging systems greater than 20 amps, current County requirements include manufacturer installation information and a residential load calculation with the EV load included at 125% of nameplate.
View PRINCE WILLIAM COUNTY details →Applicable residential electrical trade permitting and inspections.
View FAUQUIER COUNTY details →Incorporated towns and independent cities can follow different requirements. Auto Charge Pros confirms the actual jurisdiction before submitting permit paperwork.
12 / cost
Installation cost depends primarily on the electrical system and wiring route—not simply mounting the Wall Connector.
Factors include:
A Wall Connector installed beside a suitable garage panel can be very different from a concealed basement-to-garage circuit or an outdoor installation. Auto Charge Pros reviews the project before providing a written estimate.
13 / questions homeowners ask
Wall Connector can provide up to 48 amps / 11.5 kW when configured on an appropriate circuit and when the vehicle and home's electrical capacity support that output.
A 48-amp continuous charging configuration is typically installed on an appropriately designed 60-amp dedicated circuit.
No. Actual AC charging rate also depends on the vehicle's onboard charger capability.
Yes. Wall Connector can be configured for lower charging output when the electrical system or charging needs call for it.
Not necessarily. Available household electrical capacity matters more than service size alone. Reduced charging output or compatible load management may avoid an unnecessary service upgrade.
Wall Connector uses a NACS charging connector. Universal Wall Connector includes both NACS capability and an integrated J1772 adapter, making it more flexible for mixed-EV households.
Compatible Gen 3 Wall Connectors support Group Power Management so available charging power can be shared among multiple Wall Connectors.
Yes. Tesla designs Wall Connector for indoor and outdoor mounting. The electrical installation must still be appropriate for the location.
Yes. Auto Charge Pros can handle applicable electrical permitting and inspection coordination when included in the installation scope.
Auto Charge Pros provides a one-year workmanship and installed-materials warranty on covered installation work. Tesla equipment carries its applicable manufacturer warranty.
14 / service area
READY WHEN YOU ARE
Send us a photo of your electrical panel with the door open, a photo of the proposed Wall Connector location and your Tesla or EV model. We can review the basic electrical setup and determine whether the project can begin with a virtual estimate or whether an on-site visit is more appropriate.
